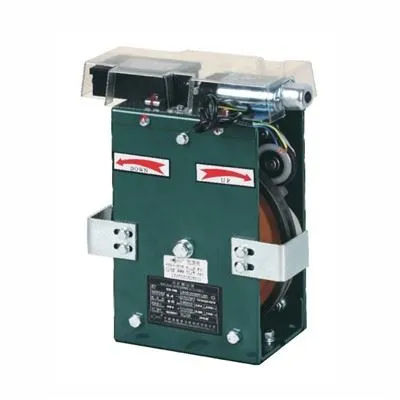

Elevator Overspeed Governor OX-186A

Product introduction

Elevator overspeed governor OX-186A, Governor Villa.

Covered specifications (Rated speed) : ≤0.4m/s

Sheave diameter: Medium 150mm

Wire rope diameter: medium 6 mm

Pulling force: ≥500N

Tension device: OX-100A/ OX-100B / OX-100C .

Power supply voltage: standard AC220V, optional DC24V; .

Work location: Car side or counterweight side

Upward control: permanent-magnet synchronous traction machine brake, counterweight safety gear, two-way security clamp

Downward control: safety gear

Remote control: operation and electrical switch reset can be tested electrically; mechanical mechanism can reset automatically

1. The speed signal switch is connected to the safety circuit, switch coil switch for reset Settings, connect power signal;

2. The electromagnet for test set, connect power signal.

Product parameter (specification)
