Sanjin Elevator Parts Co., Ltd. is one of the leading manufacturers and suppliers of elevator overspeed governor ox-186 in China. With abundant experience, we warmly welcome you to wholesale advanced elevator overspeed governor ox-186 from our factory. Welcome to view our website for more information.
Product introduction

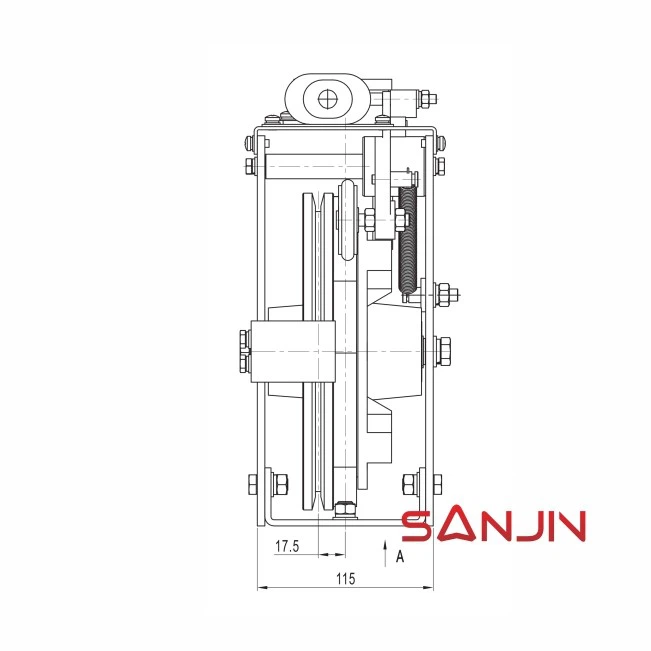

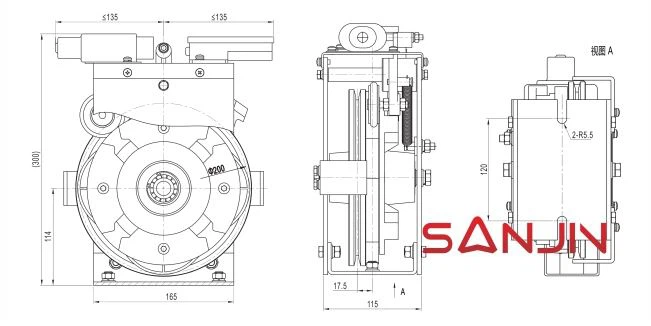

Elevator overspeed governor OX-186, Return Governor.
Covered specifications(Rated speed) :≤0.63m/s
sheave diameter: φ200mm
Wire rope diameter: φ6mm
Pulling force: ≥500N
Power supply voltage: standard AC220V, optional DC24V;
Work location: Car side or counterweight side
Upward control: permanent -magnet synchronous traction machine brake, counterweight safety gear. two-way security clamp
Downward control: safety gear
Remote control: operation and electrical switch reset can be tested electrically; mechanical mechanism can reset automatically
Product parameter (specification)
Type | Elevator parts |
Category | Elevator overspeed governor |
Brand | Aodepu |
Model | OX-186 |
Applicable | General |
Warranty Time | 1year |
Certificates | ISO9001 |
Hot Tags: elevator overspeed governor ox-186, China, suppliers, manufacturers, factory, wholesale, buy, Elevator Overspeed Governor OX 206, Elevator Overspeed Governor OX 208 A , Elevator Overspeed Governor OX 240F, Elevator Overspeed Governor OX-240B, Thyssen Elevator Maintenance Box KKB4 20F 31
