Product introduction
MONADRIVE elevator traction machine MDD480, Permanent magnet synchronous gearless traction machine.

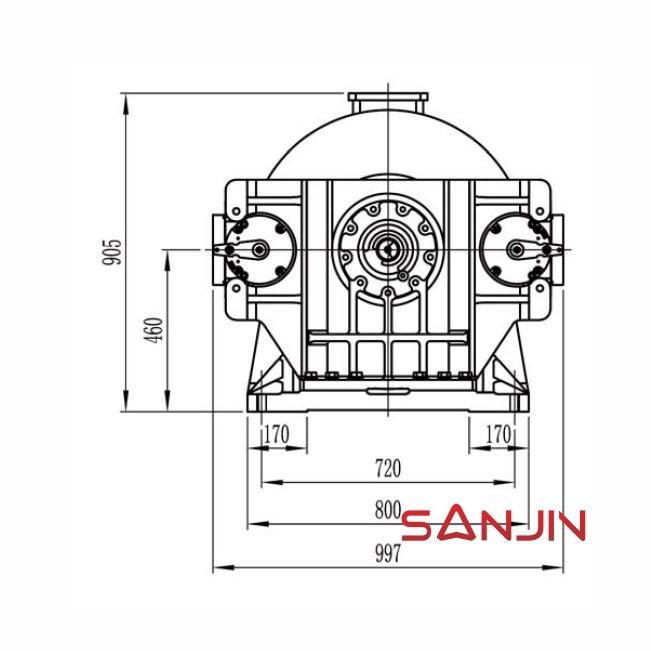

The angle of wire rope shall be within the range shown as above, while avoiding the shadow part.
Product parameter (specification)
Voltage | 380V | Roping | 2:1 |
EIv.L oad | (1600~2000)kg | Elv.Speed | (2.5~5.0)m/s |
Sheave Diam | 480mm | Duty | S5-40% |
IP Code | IP41 | Max. Static Load | 20000kg |
Ins.Class | F | Weight | 950kg |
Brake | DC110V 2x2.2A | ||
