Elevator Leveling Sensor 61N 61U 30

Sanjin Elevator Parts Co., Ltd. is one of the leading manufacturers and suppliers of elevator leveling sensor 61n 61u 30 in China. With abundant experience, we warmly welcome you to wholesale advanced elevator leveling sensor 61n 61u 30 from our factory. Welcome to view our website for more information.

Product introduction

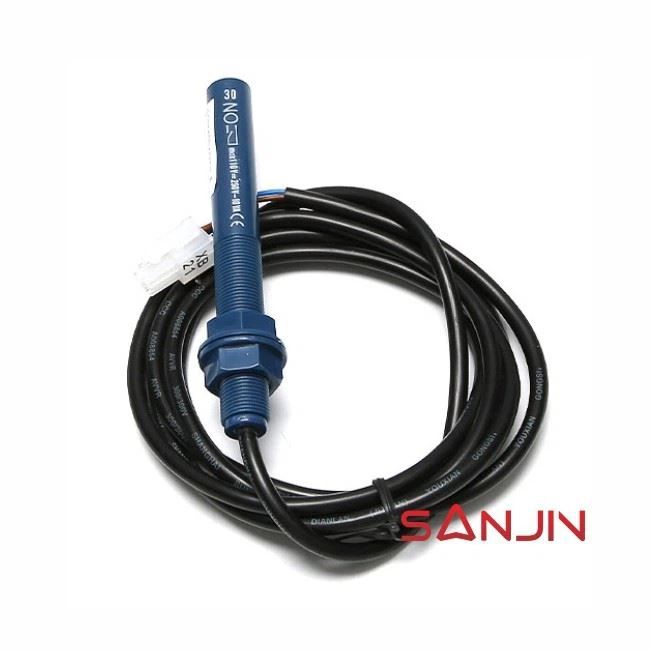

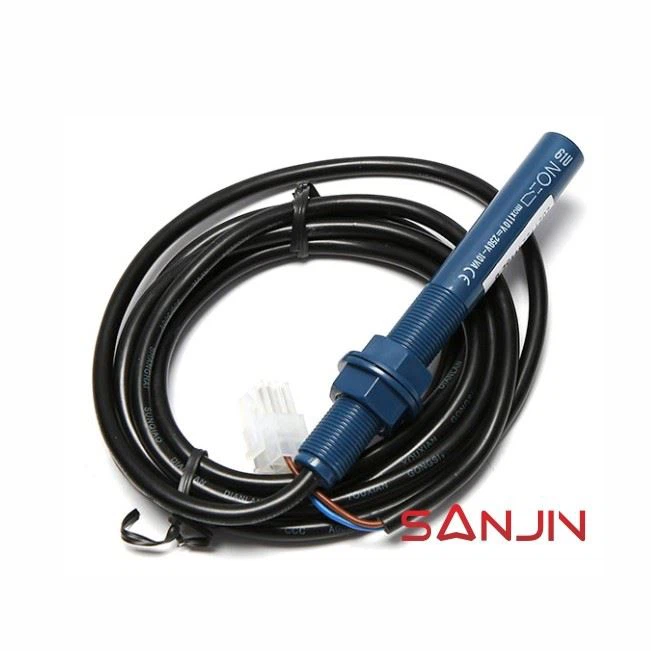

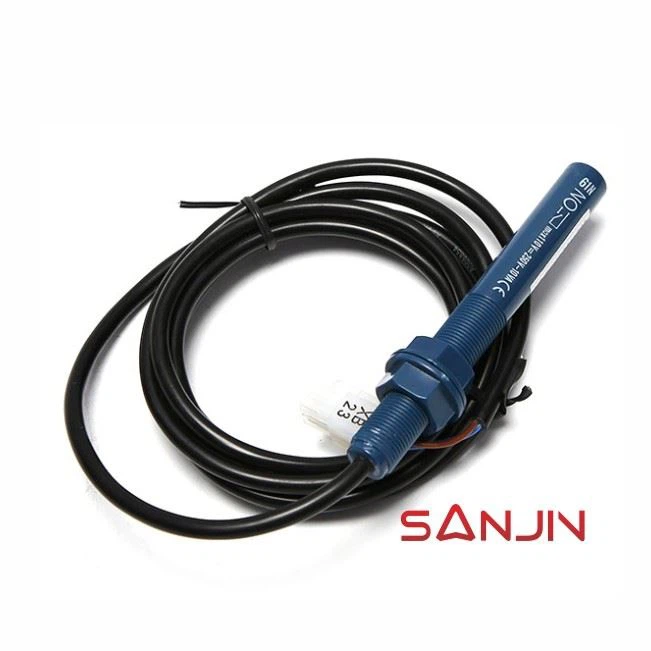

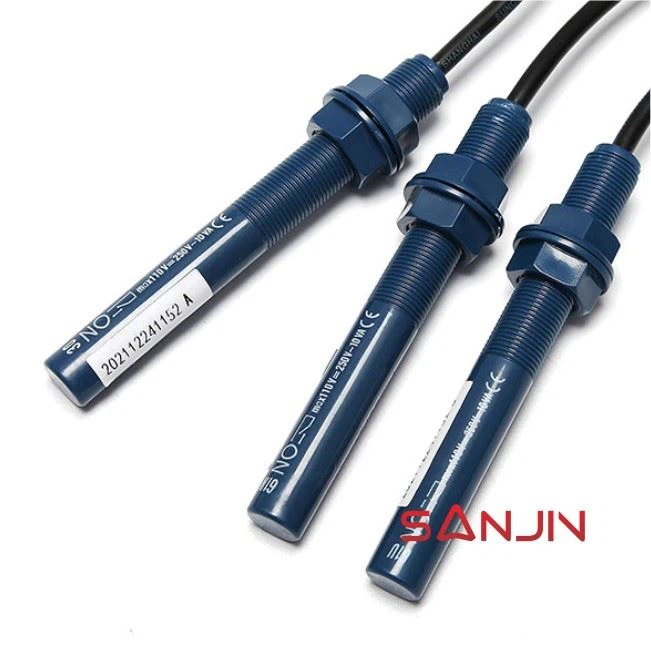

Elevator leveling sensor 61N 61U 30 KM713226G01, Elevator switch,This blue is the original new model, the color has been changed, and it is common to the old model. The new model has better quality, chip control, high temperature resistance, and is not afraid of falling. The cable length is 1500mm, 61U 61N 30 These three models are common.

Product parameter (specification)

The standard model uses reed switch control, while the upgraded model uses chip control. The upgraded model features an indicator light, is drop-resistant, and withstands high and low temperatures. The standard model has a voltage range of 0-250V, while the upgraded model has a voltage range of 0-30V. The normal voltage for elevator leveling is around 24V, so both models are compatible. If you require other functions, please confirm the voltage before purchasing. 61U6 and 1N30 are universal; the different models are used to differentiate them only by their installation location. Both operate on the principle of activating when near a magnet and immediately resetting when removed. The gray smoke detectors 77U7 and 7N77S are also universal; the different models are used only to differentiate them by their installation location. Operating principle: Black smoke detector 61 series: activates when near a magnet and immediately resets when removed; it is monostable. Gray smoke detector 77 series: activates when near a magnet and does not reset when removed; it requires re-approaching the other side of the magnet to reset; it is bistable.
