Sanjin Elevator Parts Co., Ltd. is one of the leading manufacturers and suppliers of elevator automatic rescue device in China. With abundant experience, we warmly welcome you to wholesale advanced elevator automatic rescue device from our factory. Welcome to view our website for more information.
Product introduction

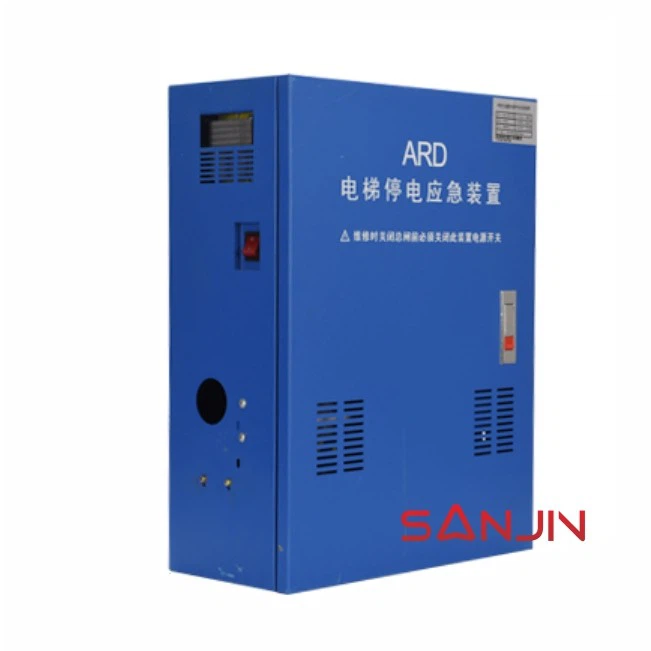

Elevator ARD Elevator Automatic Rescue Device
· Short time overload current 200%
· Toroidal transformer voltage booster
· DeLay start if power failure, delay time can be adjust
· Selecting light load direction automatically before rescue
· Intelligent battery charge management function
· Fast dynamic response if load sudden changes
· Multiple stop mode can be selected
· Interlocking with inspection and manual power-off
· Over-voltage, under-voltage, over-current, battery protection
· Elevator minor failure automatic recovery function can be selected
Product parameter (specification)
Model | Input Voltage | Output Voltage | Capacity | Adaptation Motor | Battery Pack | Weight | |
HH-ARD-2P075-4 | 3 or Single phase AC380V 50/60HZ | Single phase AC380V 50HZ | 750 VA | 2.0A | Max. 7.5 KW | DC12V7AH *2 | 20kg |
HH-ARD-2P110-4 | 900VA | 2.3A | Max. 11 KW | DC12V7AH *3 | 22kg | ||
HH-ARD-2P150-4 | 1000VA | 2.6A | Max. 15 KW | DC12V9AH *3 | 23kg | ||
HH-ARD-2P185-4 | 1300VA | 3.4A | Max. 18.5 KW | DC12V7AH *4 | 25kg | ||
HH-ARD-2P220-4 | 1550VA | 4.0A | Max. 22 KW | DC12V9AH *4 | 26kg | ||
HH-ARD-2P300-4 | 2100VA | 5.5A | Max. 30 KW | DC12V7AH *8 | 35kg | ||
HH-ARD-2P075-2 | 3 or Single phase AC220V 50/60HZ | Single phase AC220V 50HZ | 750 VA | 3.3A | Max. 7.5 KW | DC12V7AH *2 | 20kg |
HH-ARD-2P110-2 | 900VA | 5.7A | Max. 11 KW | DC12V7AH *3 | 22kg | ||
HH-ARD-2P150-2 | 1000VA | 4.5A | Max. 15 KW | DC12V9AH *3 | 23kg | ||
HH-ARD-2P185-2 | 1300VA | 5.8A | Max. 18.5 KW | DC12V7AH *4 | 25kg | ||
HH-ARD-2P220-2 | 1550VA | 7A | Max. 22 KW | DC12V9AH *4 | 26kg | ||
