Product introduction

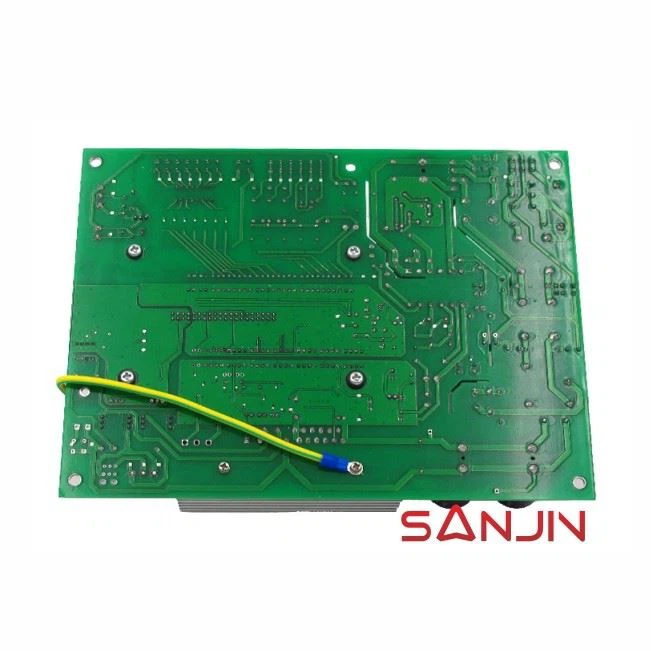

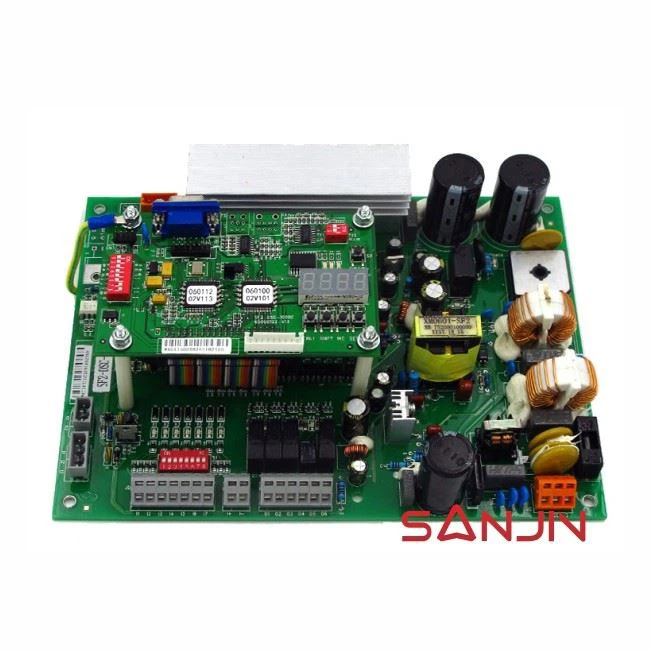

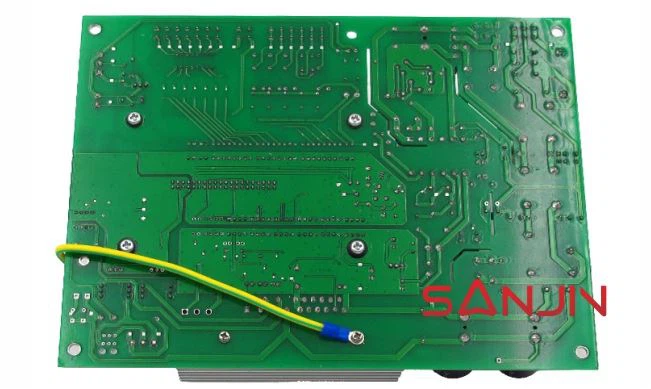

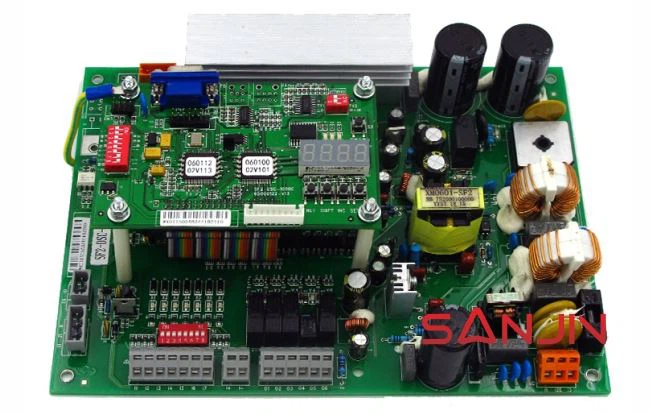

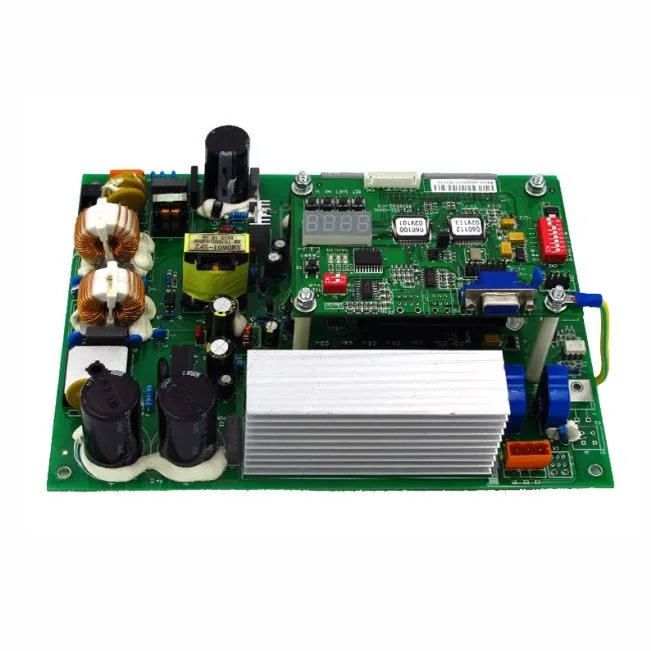

Hitachi elevator door machine board SF2-DSC-1200, This PCB is the permanent magnet synchronous door machine control board of HGP MCA elevator. Its models include SF2-DSC-1000 SF2-DSC-1200 SF2-DSC-1000C SF2-DSC-1200C, and its other model is 65000122-V22.
Product parameter (specification)
|
Type |
Elevator parts |
|
Category |
Elevator pcb |
|
Brand |
Hitachi |
|
Model |
SF2-DSC-1000C SF2-DSC-1200 |
|
Applicable |
Hitachi elevator |
|
Warranty Time |
1 year |
|
Certificates |
ISO9001 |
The SF door width self-test procedure is as follows:
· Use the car top inspection operation mode to move the elevator to the level position.
· Set the DIP switch SI-2 on the control panel to the "OFF" position (marked with the Stop sign).
· Press the door width self-test self-locking switch S2 on the control panel. The elevator car door will automatically open once to test the door width. (Note: No personnel are allowed to enter or exit the car during the door width self-test.)
· After the elevator car door opens and then closes completely, the door width test is complete.
· After the door width measurement is completed, reset switch S2 and set the DIP switch SI-2 to the "ON" position (marked with the Run sign) to restore the elevator to normal control status.
